Product Description
600 mm High-Accuracy Linear Rail Kit

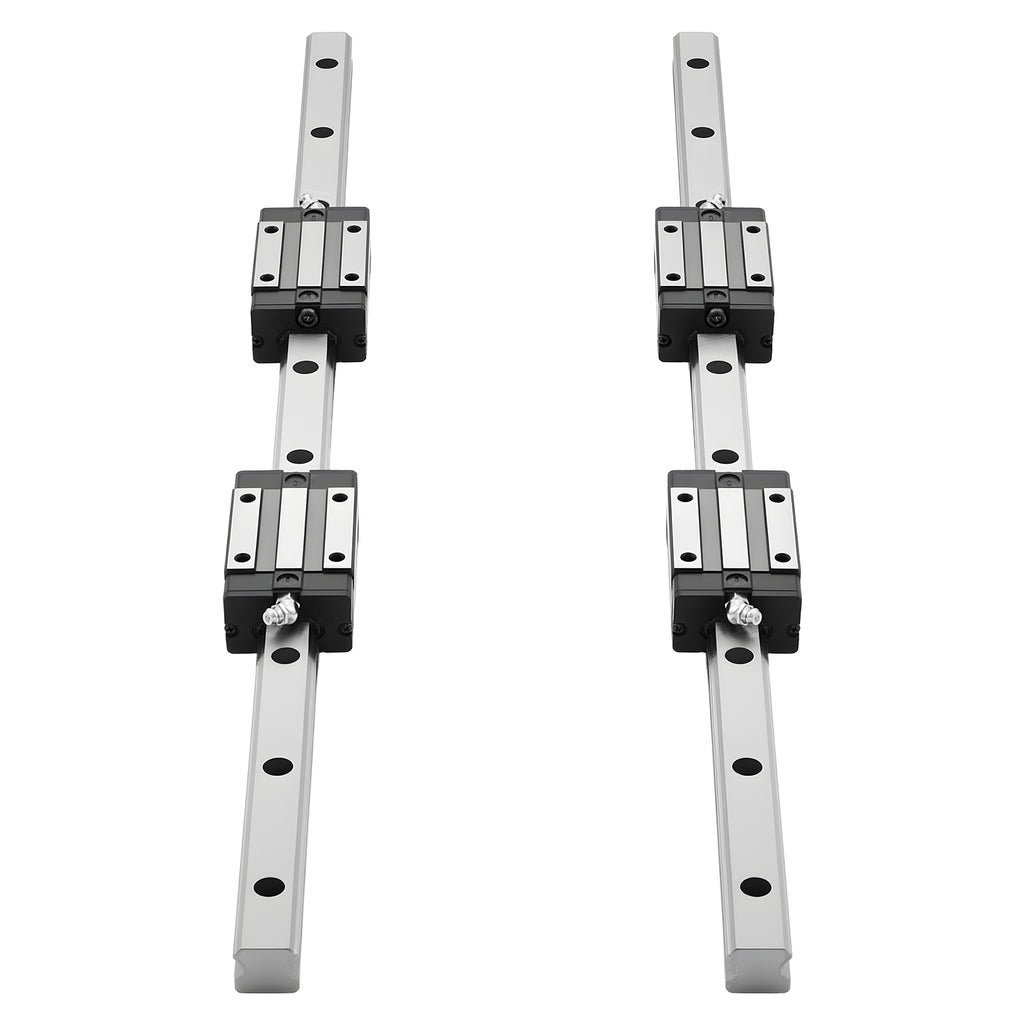

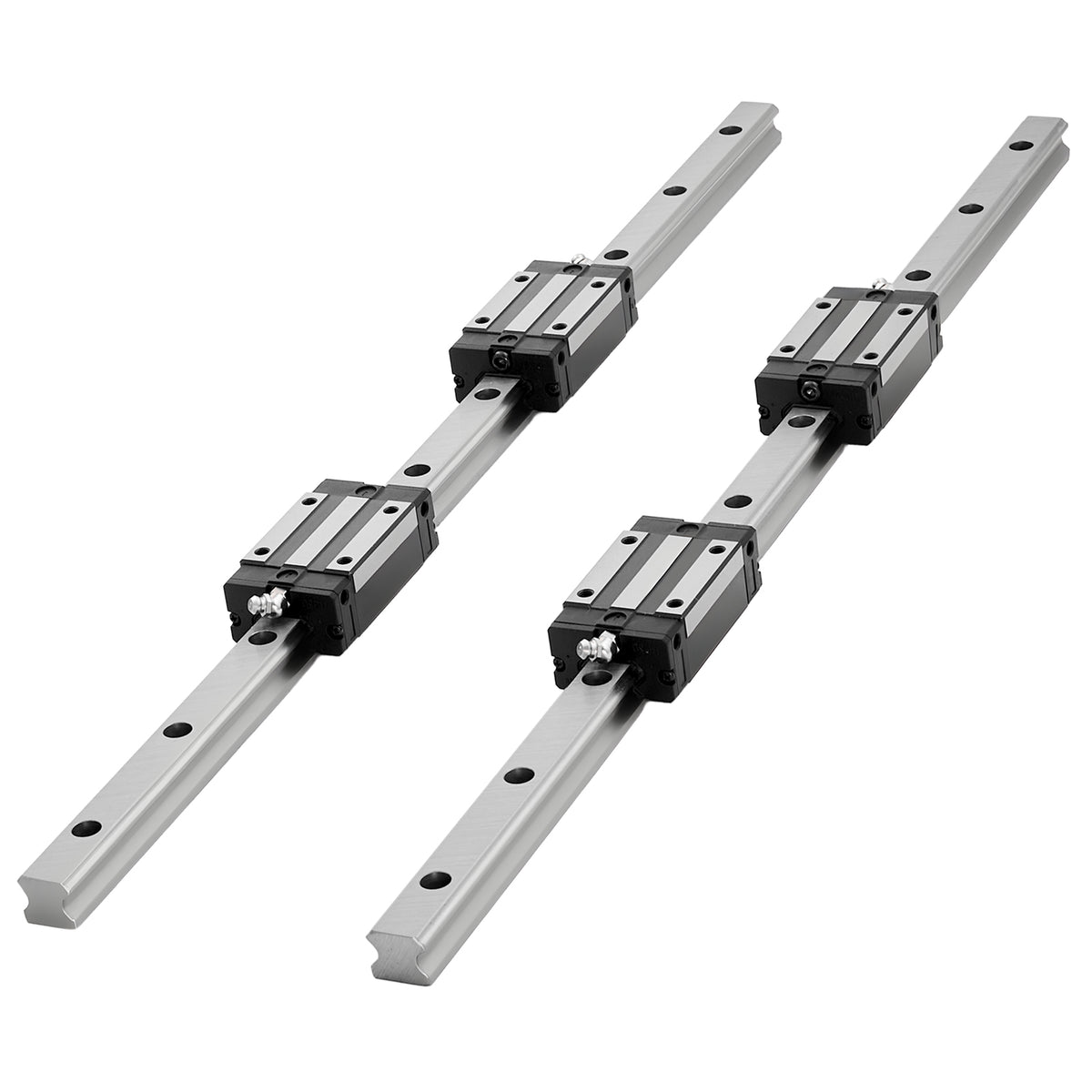

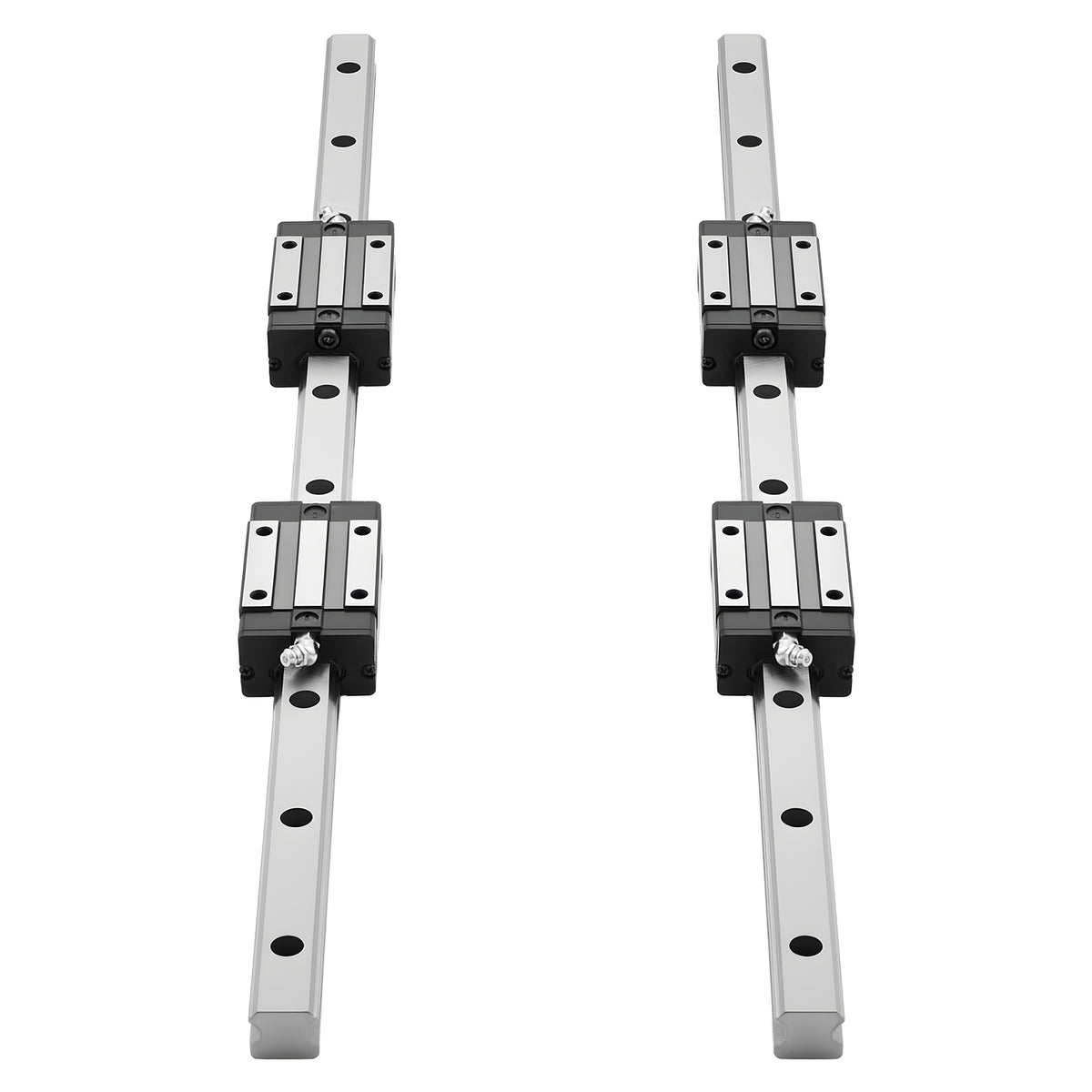

This set features two linear rails, four slide blocks, and a ball screw. The rails, crafted from medium-carbon steel, are designed with accurately spaced mounting holes to minimize vibration and enable smooth, quiet movement. Each slide block, made from durable alloy steel, incorporates ball bearings to ensure seamless and uninterrupted motion.
Comprehensive Linear Motion Rail Set
The set comprises two linear rails and four sliding blocks, making it suitable for use with cutting machines, grinding machines, milling machines, drilling machines, and various other machinery.
Durable and resistant to corrosion
This linear shaft is designed with a sturdy chrome-plated finish, offering reliable resistance to heat and moisture.
Enhanced Accuracy

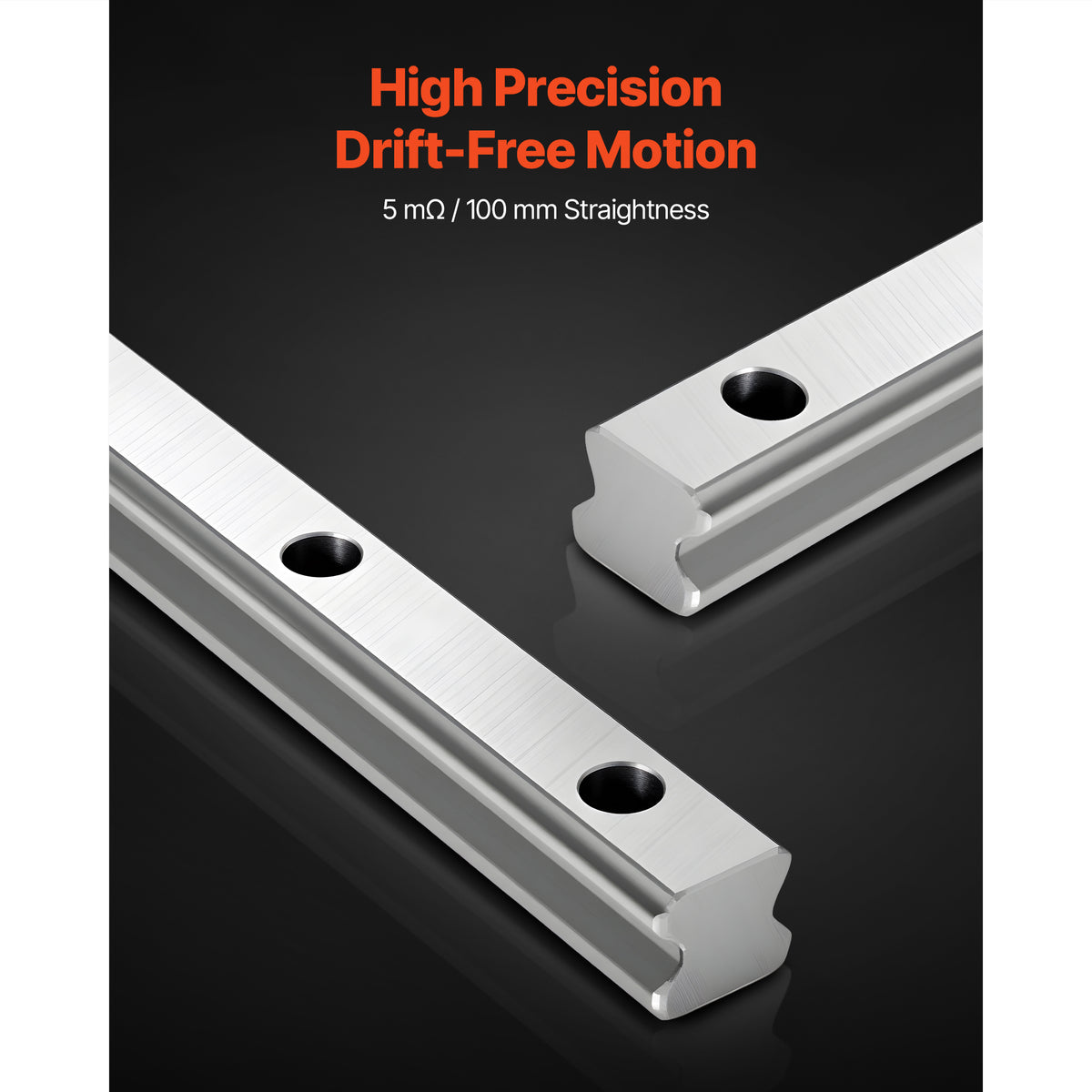

The linear motion guide rail is meticulously crafted with precision-drilled holes, ensuring consistent spacing and accurate diameters. This design delivers reliable motion precision and dependable repeat positioning for enhanced stability.
Designed to handle substantial weight with durability and reliability.
The durable linear guide rail, crafted entirely from metal, offers exceptional strength and deformation resistance. The slide blocks secure firmly onto the shaft, ensuring stable support even under substantial loads.
Broad Compatibility

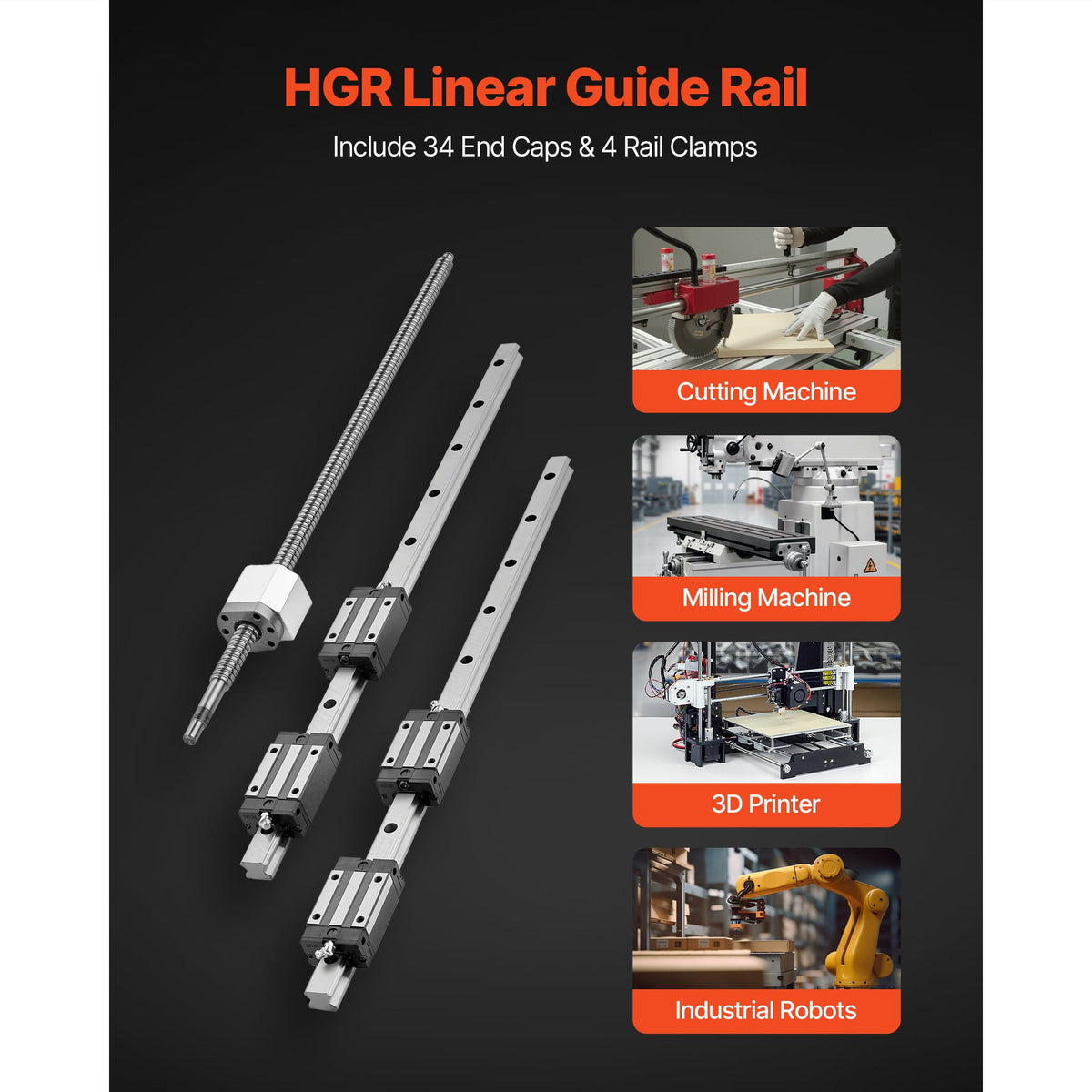

This linear motion guide rail is designed for use in applications such as milling machines, 3D printers, industrial equipment, and cutting tools.

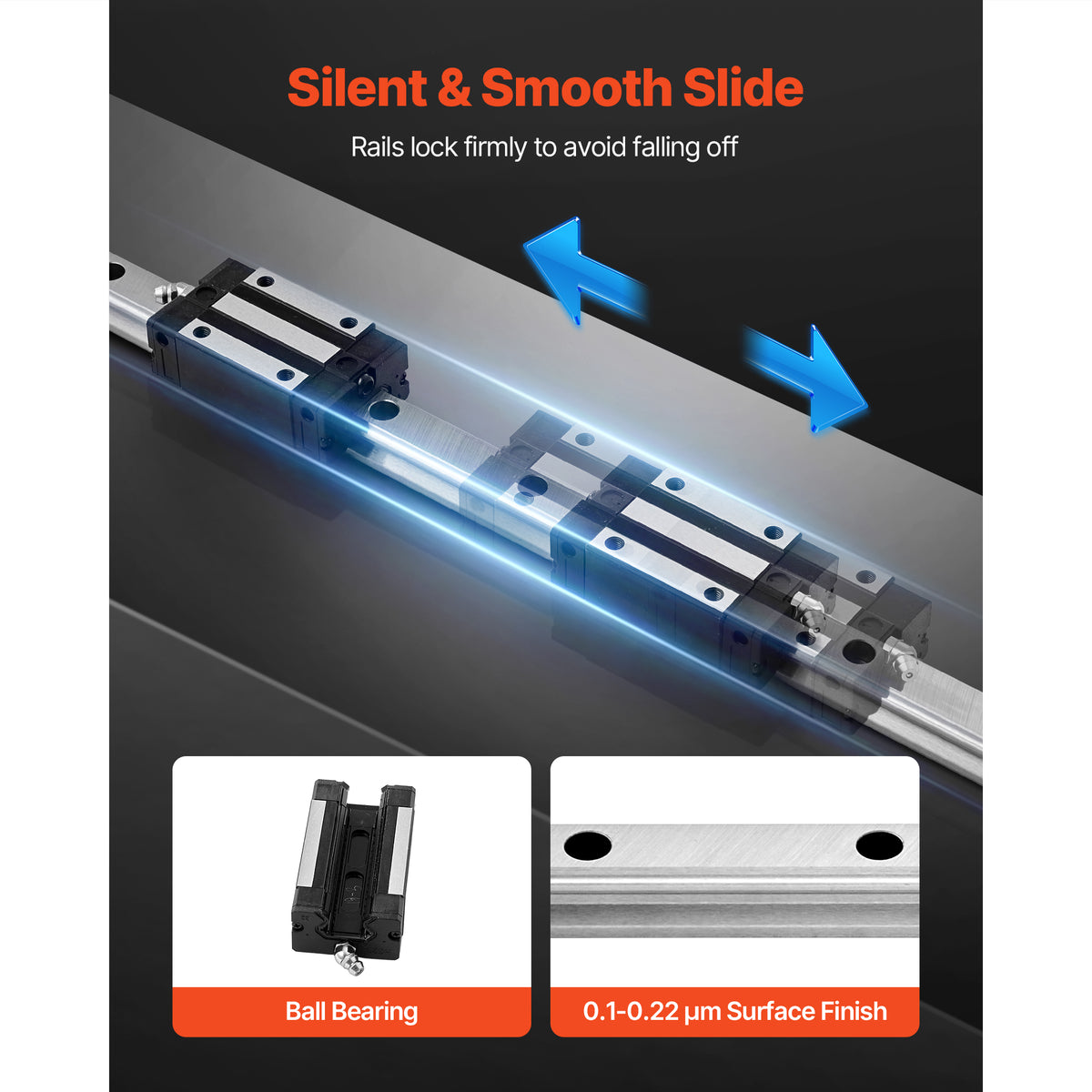

Quiet and smooth sliding operation
Built-in ball bearings provide seamless and quiet operation. The low-resistance design minimizes effort and improves motion effectiveness.

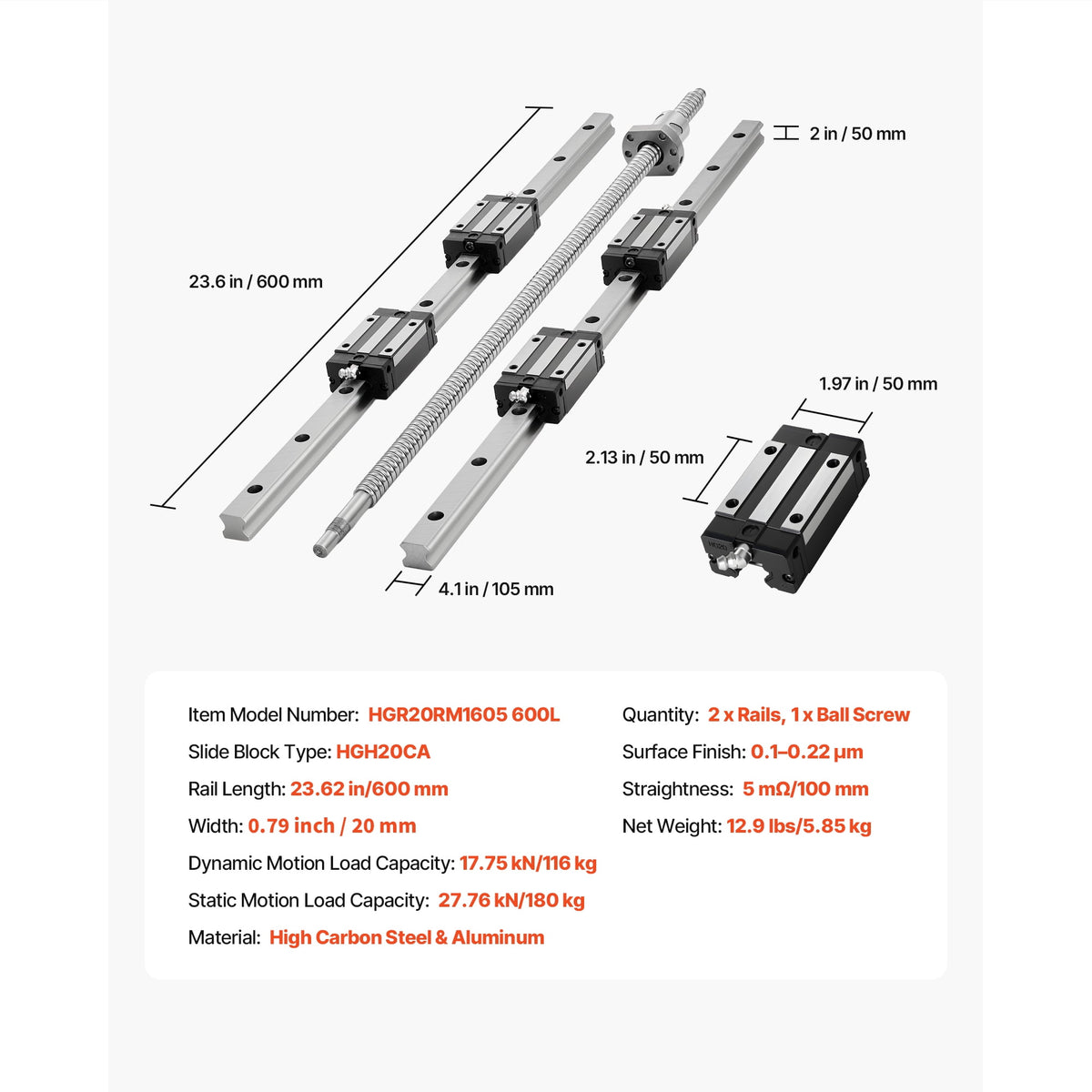

Specifications
Item Model Number: HGR20RM1605 600L
Slide Block Type: HGH20CA
Rail Length: 23.62 in/600 mm
Diameter: Ø 0.98 in/25 mm
Straightness: 5 mΩ/100 mm
Surface Finish: 0.1–0.22 μm
Dynamic Motion Load Capacity: 17.75 kN/116 kg
Static Motion Load Capacity: 27.76 kN/180 kg
Material: High Carbon Steel & Aluminum
Quantity: 2 x Rails, 1 x Ball Screw
Package Content
1 x Linear Rail Kit

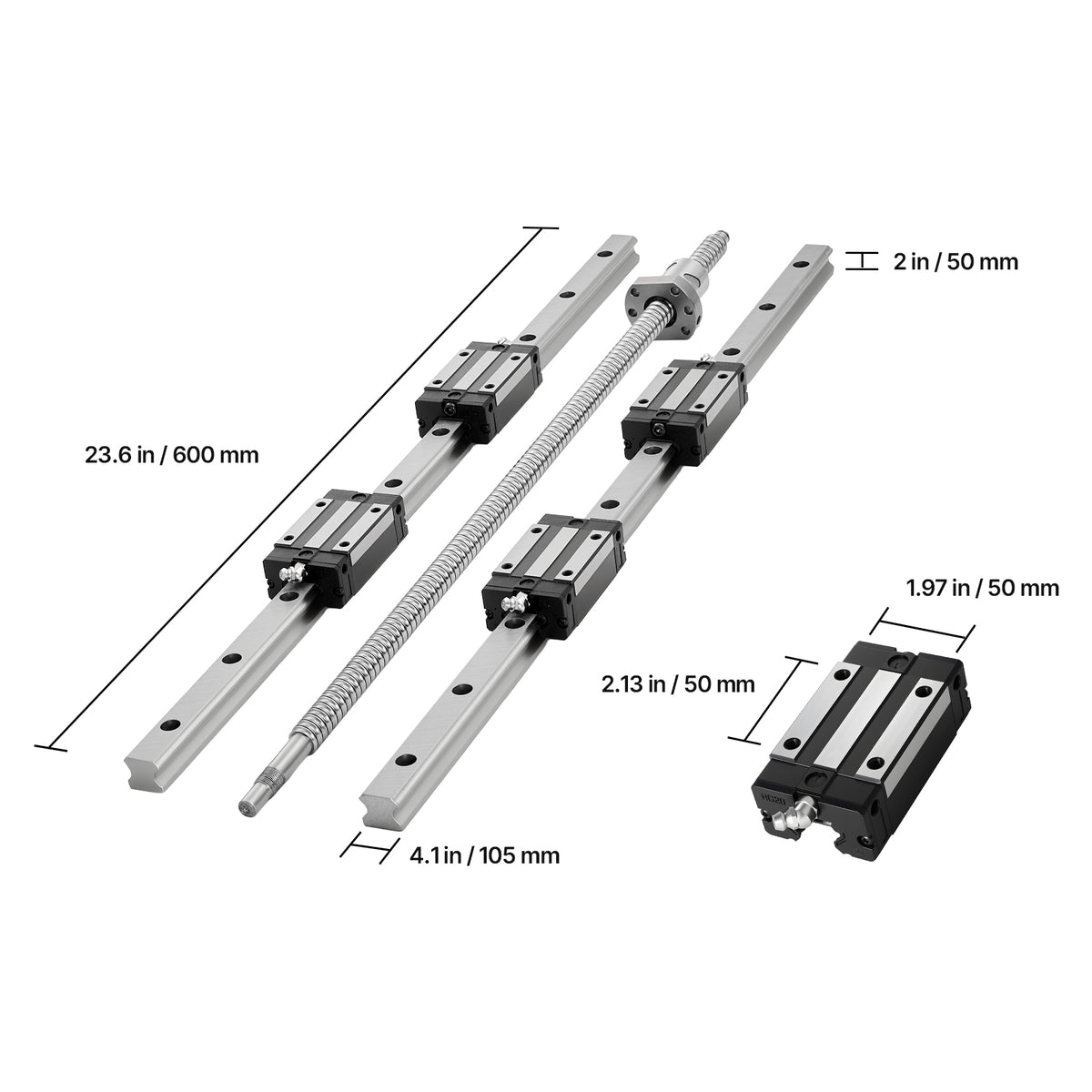

- HGR Linear Rail Kit: Includes two 23.62-inch (600 mm) linear rails along with a ball screw. This assembly is suitable for use with milling equipment, 3D printing devices, industrial machinery, and cutting systems.

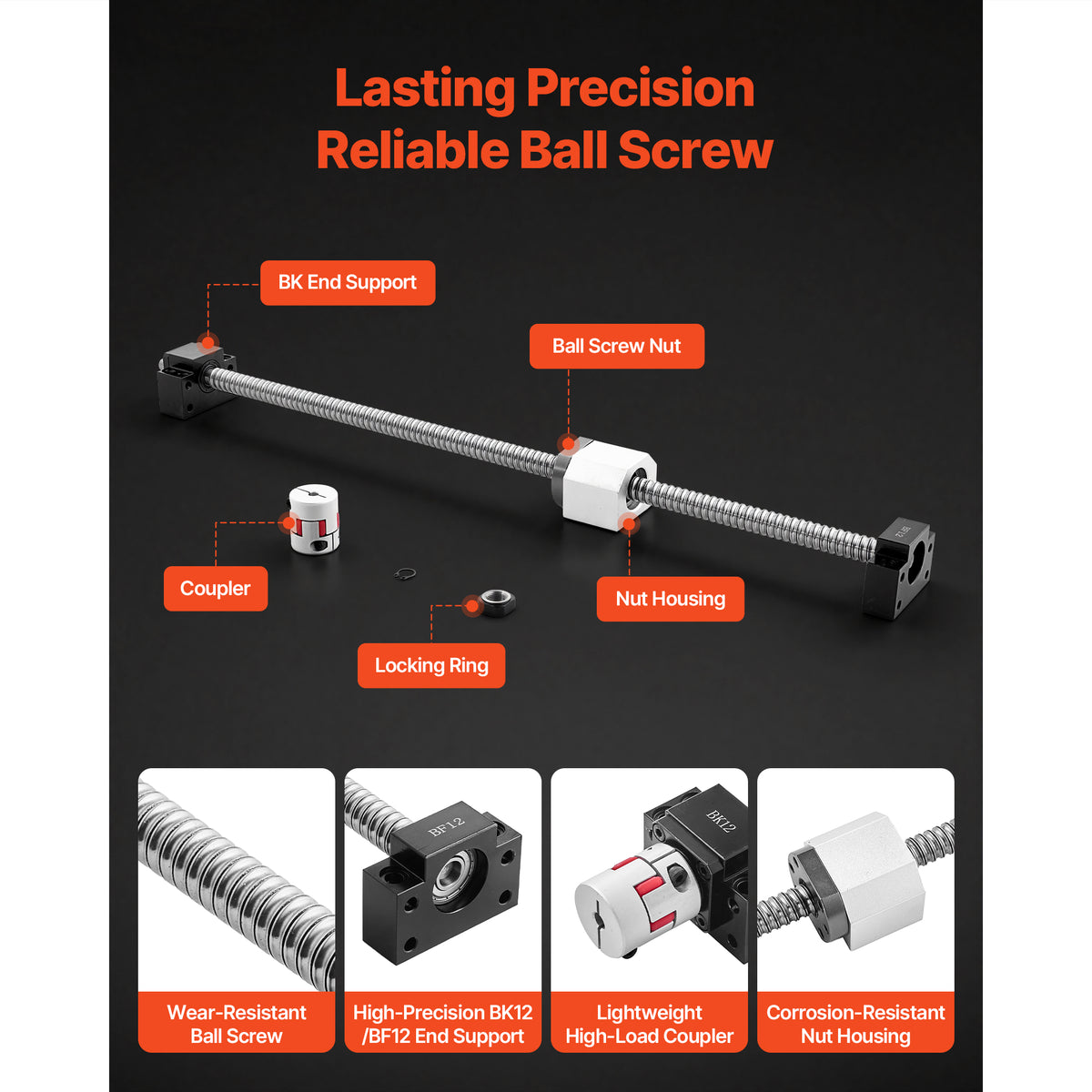

- Durable Ball Screw: This linear guide rail set is equipped with a robust ball screw designed for wear resistance, precise BK12/BF12 end supports, a high-capacity coupler, and a nut housing that resists corrosion. Ensures consistent performance and reliability during regular operation.

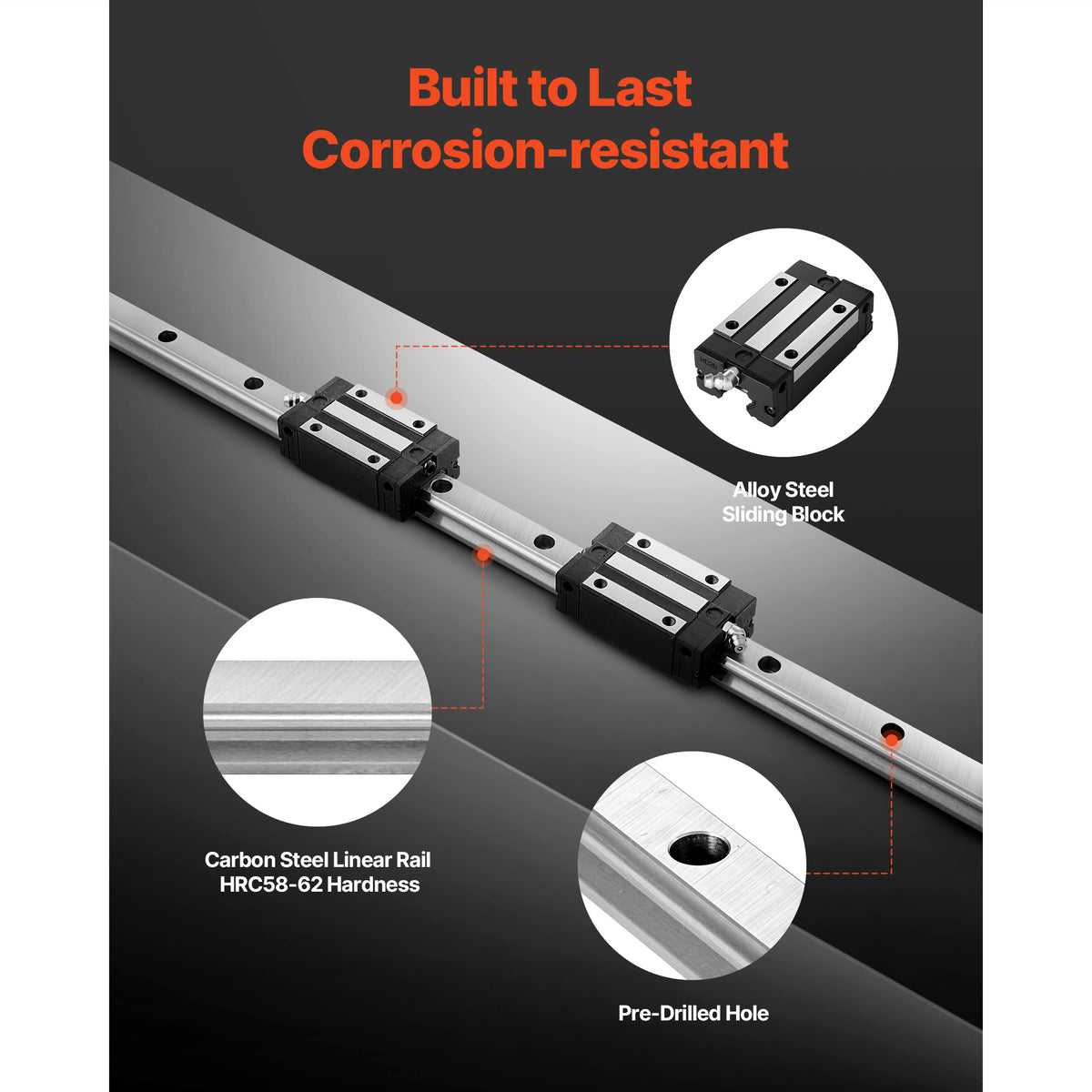

- Durable and Resistant Design: Made from high-strength medium-carbon steel (HRC58–62) linear rails and alloy steel slide blocks, featuring pre-drilled holes for easy installation. The electroplated coating, with a thickness of at least 10 μm, provides effective protection against rust and corrosion, even in damp environments like basements.
- Quiet and Smooth Movement: Equipped with ball-bearing slide blocks, this design ensures low-friction operation and stable linear motion. It minimizes noise and reduces wear, providing precise and consistent performance during every use.
- Enhanced Accuracy and Reliable Performance: Designed with a surface finish of 0.1–0.22 μm and straightness of 5 mΩ, this linear slide rail set offers consistent hole diameter and spacing for effortless installation and dependable positioning, even across extended travel ranges.
